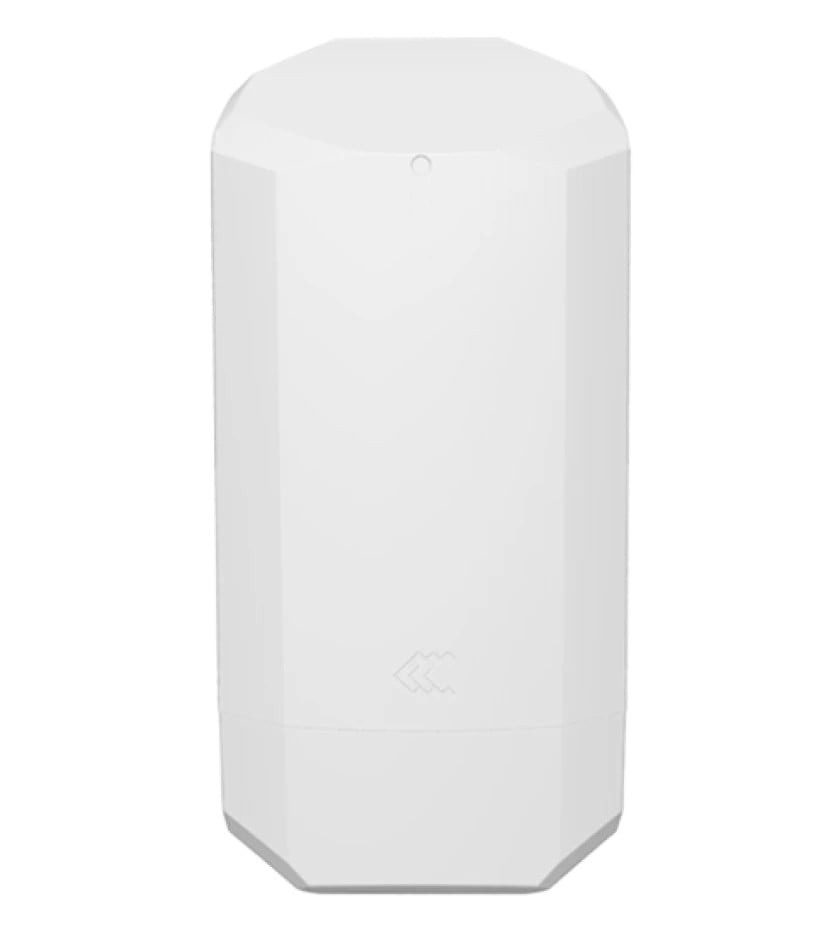

Teltonika OTD500 5G

Mobile

Mobile module

5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL



3GPP Release

Release 16



eSIM

Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans



SIM switch

2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection



Status

IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC



SMS

SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP



USSD

Supports sending and reading Unstructured Supplementary Service Data messages



Block/Allow list

Operator block/allow list (by country or separate operators)



Band management

Band lock, Used band status display



SIM idle protection service

Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked



SIM PIN code management

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN



APN

Auto APN



Bridge

Direct connection (bridge) between mobile ISP and device on LAN



Passthrough

Router assigns its mobile WAN IP address to another device on LAN



Framed routing

Framed routing: support an IP network behind 5G UE



Ethernet

Ethernet

2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover



Network

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing



Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN



VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets



Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection



Firewall

Port forward, traffic rules, custom rules, TTL target customisation



Firewall status page

View all your Firewall statistics, rules, and rule counters



Port management

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on



Network topology

Visual representation of your network, showing which devices are connected to which other devices



DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards



QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e



DDNS

Supported >77 service providers, others can be configured manually



DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS



Network backup

VRRP, Wired options, each of which can be used as an automatic Failover



Load balancing

Balance Internet traffic over multiple WAN connections



Hotspot

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes



SSHFS

Possibility to mount remote file system via SSH protocol



VRF support

Initial virtual routing and forwarding (VRF) support



Traffic Management

Real-time monitoring, wireless signal charts, traffic usage history



Security

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator



Firewall

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64



Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)



VLAN

Port and tag-based VLAN separation



Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number



WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only



Access control

Flexible access control of SSH, Web interface, CLI and Telnet



TPM

Identification and authentication module, TPM 2.0 standard



Certificate Manager

Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates



802.1x

Port-based network access control server



VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods



OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,



BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256



IPsec

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)



GRE

GRE tunnel, GRE tunnel over IPsec support



PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support



Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code



DMVPN

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support



SSTP

SSTP client instance support



ZeroTier

ZeroTier VPN client support



WireGuard

WireGuard VPN client and server support



Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.



Tailscale

Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol



OPC UA

Supported modes

Client, Server



Supported connection types

TCP



MQTT Gateway

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker



MODBUS

Supported modes

Server, Client



Supported connection types

TCP



Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality



Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



Data to Server

Protocol

HTTP(S), MQTT, Azure MQTT



Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature



DNP3

Supported modes

Station, Outstation



Supported connection

TCP



DLMS/COSEM

DLMS Support

DLMS - standard protocol for utility meter data exchange



Supported modes

Client



Supported connection types

TCP



API

Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com



Monitoring & Management

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status



FOTA

Firmware update from server, automatic notification



SSH

SSH (v1, v2)



Email

Receive email message status alerts of various services



SMS

SMS status, SMS configuration



Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer



TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem



MQTT

MQTT Broker, MQTT publisher



SNMP

SNMP (v1, v2, v3), SNMP Trap, Brute force protection



JSON-RPC

Management API over HTTP/HTTPS



RMS

Teltonika Remote Management System (RMS)



IoT Platforms

ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type



Cumulocity - Cloud of Things

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions



Azure IoT Hub

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs



AWS IoT Core

Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality



System Characteristics

CPU

MediaTek, Dual-core, 880 MHz, MIPS1004Kc



RAM

256 MB, DDR3



FLASH storage

16 MB serial NOR flash, 256 MB serial NAND flash



Firmware/Configuration

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup



FOTA

Update FW



RMS

Update FW/configuration for multiple devices at once



Keep settings

Update FW without losing current configuration



Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration



FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)



Supported languages

Busybox shell, Lua, C, C++, and Python, Java in Package manager



Development tools

SDK package with build environment provided



GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs



Package Manager

The Package Manager is a service used to install additional software on the device



POE IN

PoE ports

1 x PoE In



PoE standards

802.3af/at



POE OUT

PoE ports

1 x PoE Out



PoE standards

802.3af Alternative B



PoE Max Power per Port (at PSE)

15 W Max (power supply unit dependent)



Power

Connector

RJ45 Socket



Input voltage range

42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection



Input voltage range for PoE

42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection



Power consumption

Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W



Physical Interfaces

Ethernet

2 x RJ45 ports, 10/100/1000 Mbps



Status LEDs

3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs



SIM

2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V



Power

RJ45, PoE In, 42.5 – 57.0 VDC



Antennas

4 x internal antennas



Antennas specifications

4 x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional



Reset

Reboot/User default reset/Factory reset button



Physical Specification

Casing material

Plastic (PC+ASA)



Dimensions (W x H x D)

110 x 49.30 x 235 mm



Weight

385 g



Mounting options

Mounting bracket (for vertical flat surface or pole mounting)



Operating Environment

Operating temperature

-40 °C to 55 °C



Operating humidity

10% to 90% non-condensing



Ingress Protection Rating

IP55



Regulatory & Type Approvals

Regulatory

CE, UKCA, RCM, CB, EAC, UCRF, WEEE



EMC Emissions & Immunity

Standards

EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2: 2019 + A1:2021; EN 61000-3-3: 2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-52 V1.2.1



ESD

EN 61000-4-2:2009



Radiated Immunity

EN IEC 61000-4-3:2020



EFT

EN 61000-4-4:2012



Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017



CS

EN 61000-4-6:2014



DIP

EN 61000-4-11:2020



RF

Standards

EN 301 908-1 V13.1.1



EN 301 908-2 V13.1.1



EN 301 908-13 V13.1.1



EN 301 908-25 V15.1.1_15.0.6



Safety

Standards

CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020



RCM: AS/NZS 62368.1:2022



CB: IEC 62368-1:2018
