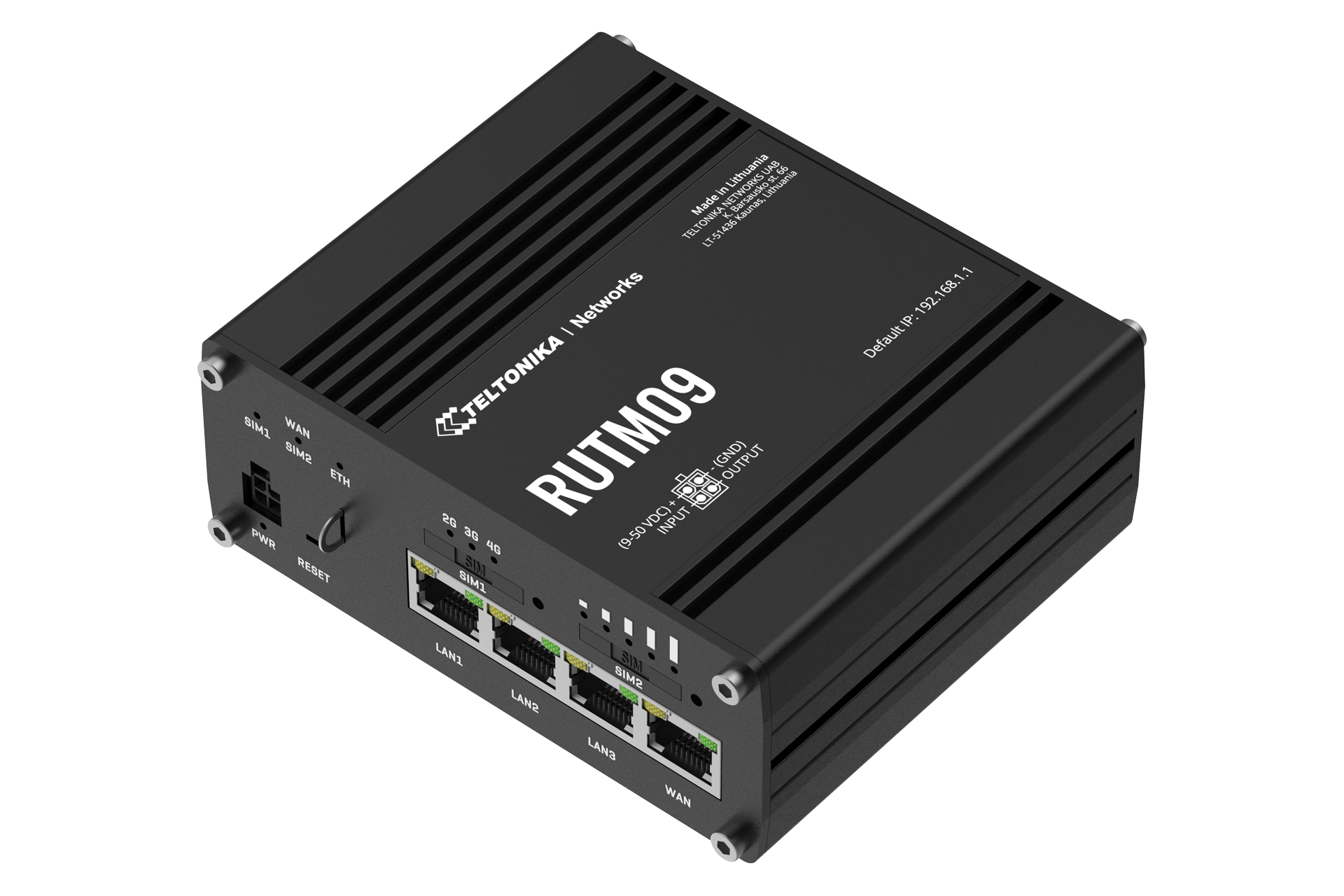

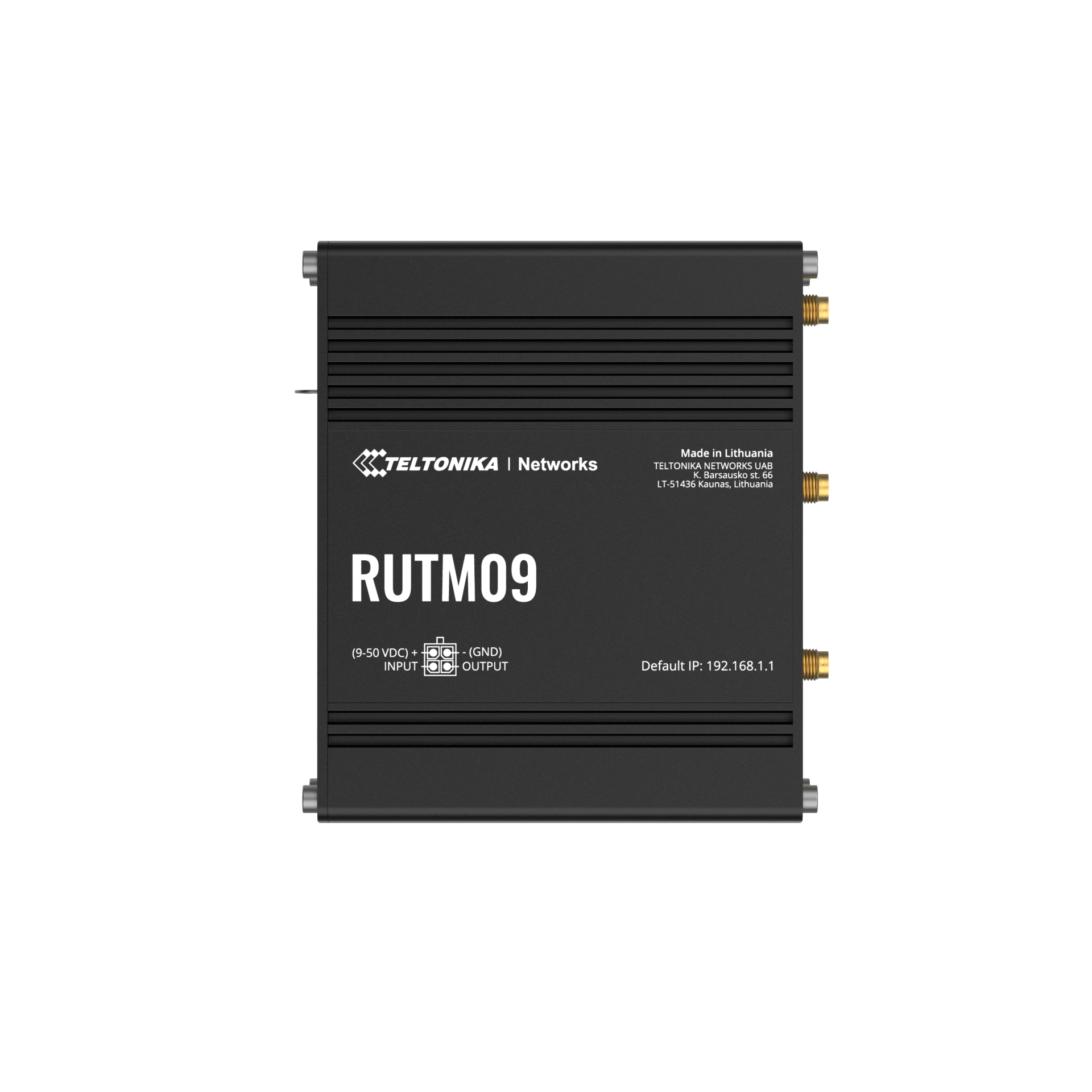

Teltonika RUTM09 je profesionalni industrijski 4G LTE ruter namijenjen projektima koji zahtijevaju stabilnu, brzu i sigurnu mobilnu konekciju. Uz podršku za LTE Cat 6, ruter postiže brzine do 300 Mbps pri preuzimanju i 50 Mbps pri slanju, što ga čini idealnim za zahtjevne IoT i poslovne aplikacije.
Uređaj dolazi sa Dual SIM funkcijom koja osigurava automatsko prebacivanje između operatera u slučaju gubitka signala, prekida veze ili prekoračenja limita. RUTM09 je opremljen sa četiri Gigabit Ethernet porta, USB priključkom i podrškom za do 128 VLAN-ova, što omogućava naprednu segmentaciju i upravljanje mrežom.
Integrisani GNSS modul (GPS/GLONASS/BeiDou/Galileo) omogućava praćenje lokacije, sinhronizaciju vremena te korištenje u logistici, transportu i udaljenim instalacijama. Ruter pokreće RutOS, Linux-bazirani sistem koji nudi širok spektar sigurnosnih opcija, napredni firewall, filtriranje prometa i podršku za DHCP, SNMP, MQTT i RMS daljinsko upravljanje.
RUTM09 podržava veliki broj VPN tehnologija – IPsec, OpenVPN, WireGuard, GRE, L2TP – čime se osigurava visok nivo zaštite i šifrovane komunikacije. Kućište od anodiziranog aluminija i radna temperatura od –40°C do +75°C garantuju pouzdanost u industrijskim uslovima.
Cellular / Mobile
-
LTE: 4G LTE Cat 6, up to 300 Mbps DL / 50 Mbps UL
-
3G: Up to 42 Mbps DL / 5.76 Mbps UL
-
3GPP: Release 12
-
SIM: 2 × Mini-SIM (2FF), auto-switch on weak signal, data/SMS limit, roaming control, network loss
-
SIM PIN management: Set/change/disable SIM PIN
-
APN: Auto APN
Networking / Interfaces
-
Ethernet: 1 × WAN + 3 × LAN, all Gigabit RJ45 (10/100/1000 Mbps)
-
VLAN: Up to 128 tag- or port-based VLANs
-
Routing: Static + dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
-
Supported protocols: TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP/S, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, SSH, DHCP, Telnet, SNMP, MQTT
-
VoIP passthrough: H.323 and SIP ALG
-
Connection monitoring: Ping reboot, Wget reboot, periodic reboot, LCP/ICMP checks
-
Firewall: Port forwarding, custom rules, traffic statistics
-
DHCP: Server, relay, static/dynamic leases
-
QoS: Smart Queue Management (SQM) based on protocol, port, service
-
DDNS: Multiple providers + custom
-
Failover: Mobile, wired, VRRP
-
Load balancing: Multi-WAN traffic balancing
-
Hotspot: Captive portal, RADIUS, SMS login, custom themes, scripting
VPN / Tunneling
-
IPsec (IKEv1 & IKEv2), multiple encryption options
-
GRE tunnels + GRE over IPsec
-
L2TP / PPTP client & server, L2TPv3, L2TP over IPsec
-
Stunnel (TLS proxy)
-
DMVPN Phase 2 & 3, dual hub
-
SSTP client
-
WireGuard client & server
-
ZeroTier, Tinc, Tailscale
IoT / Data to Server
-
OPC UA client & server (TCP)
-
Modbus TCP & USB (client & server), custom registers
-
Supported data formats: INT, UINT, float, HEX, ASCII
-
MQTT Gateway (Modbus → MQTT)
-
DNP3 (TCP / USB)
-
Remote management: HTTP(S), JSON-RPC, SNMP v1/v2/v3, TR-069, Teltonika RMS
-
Cloud platforms: ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
GNSS / Location
-
GPS, GLONASS, BeiDou, Galileo, QZSS
-
Location output via Web UI, SMS, TAVL, RMS
-
NMEA 0183 support
-
Geofencing with configurable zones
USB
-
1 × USB-A (USB 2.0)
-
Supported use cases: HDD, flash drive, modem, printer, USB-serial adapter
-
File systems: FAT, FAT32, exFAT, NTFS (read-only), ext2/3/4
Input / Output
-
Digital input: 0–6 V = low, 8–50 V = high
-
Digital output: Open-collector, max 50 V / 300 mA
-
Event notifications: Email, SMS, RMS
-
I/O juggler: Conditional event automation
Power
-
4-pin industrial DC connector
-
Input: 9–50 V DC, reverse polarity protection, surge protection (>51 V)
-
Passive PoE on LAN1 (Mode B), 9–50 V DC (non-802.3af/at/bt)
-
Power consumption: Idle <2.65 W, Max <9.82 W
Physical / Mechanical
-
Dimensions: 115 × 44.2 × 95.1 mm
-
Weight: 457 g
-
Antennas: 2 × SMA mobile, 1 × SMA GNSS
-
SIM: 2 × Mini SIM (1.8 V / 3 V)
-
Buttons: Reset (reboot/factory reset)
-
LEDs: WAN, mobile, signal strength, LAN, power
-
Grounding screw
-
Mounting: DIN-rail, wall, flat surface
Environmental
-
Operating temperature: –40 °C to +75 °C
-
Humidity: 10% – 90%, non-condensing
-
Protection: IP30
Certifications
-
CE, UKCA, RCM, CB, E-mark
-
EMC/Immunity: EN 55032, EN 55035, EN 61000-4-2/3/4/5/11
