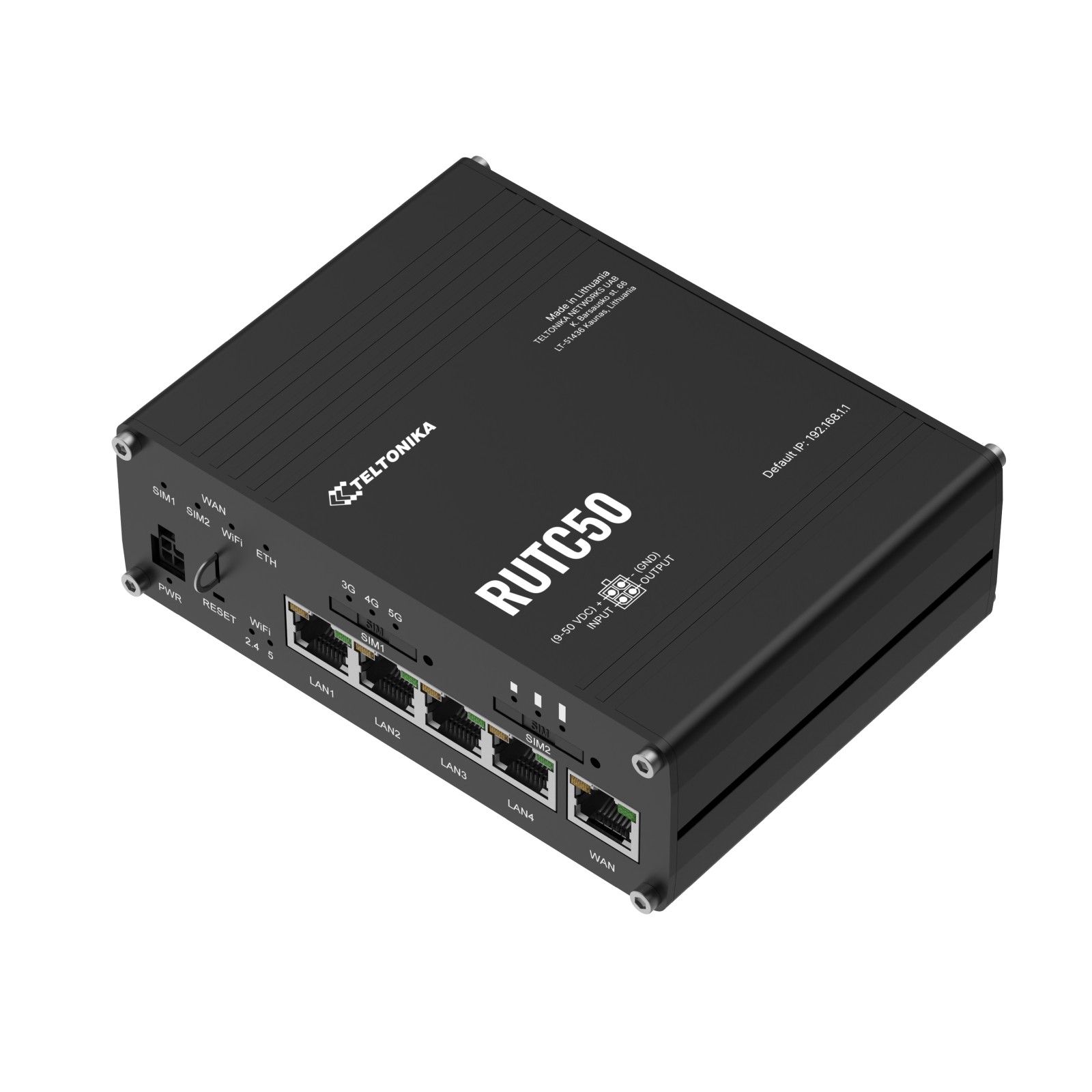

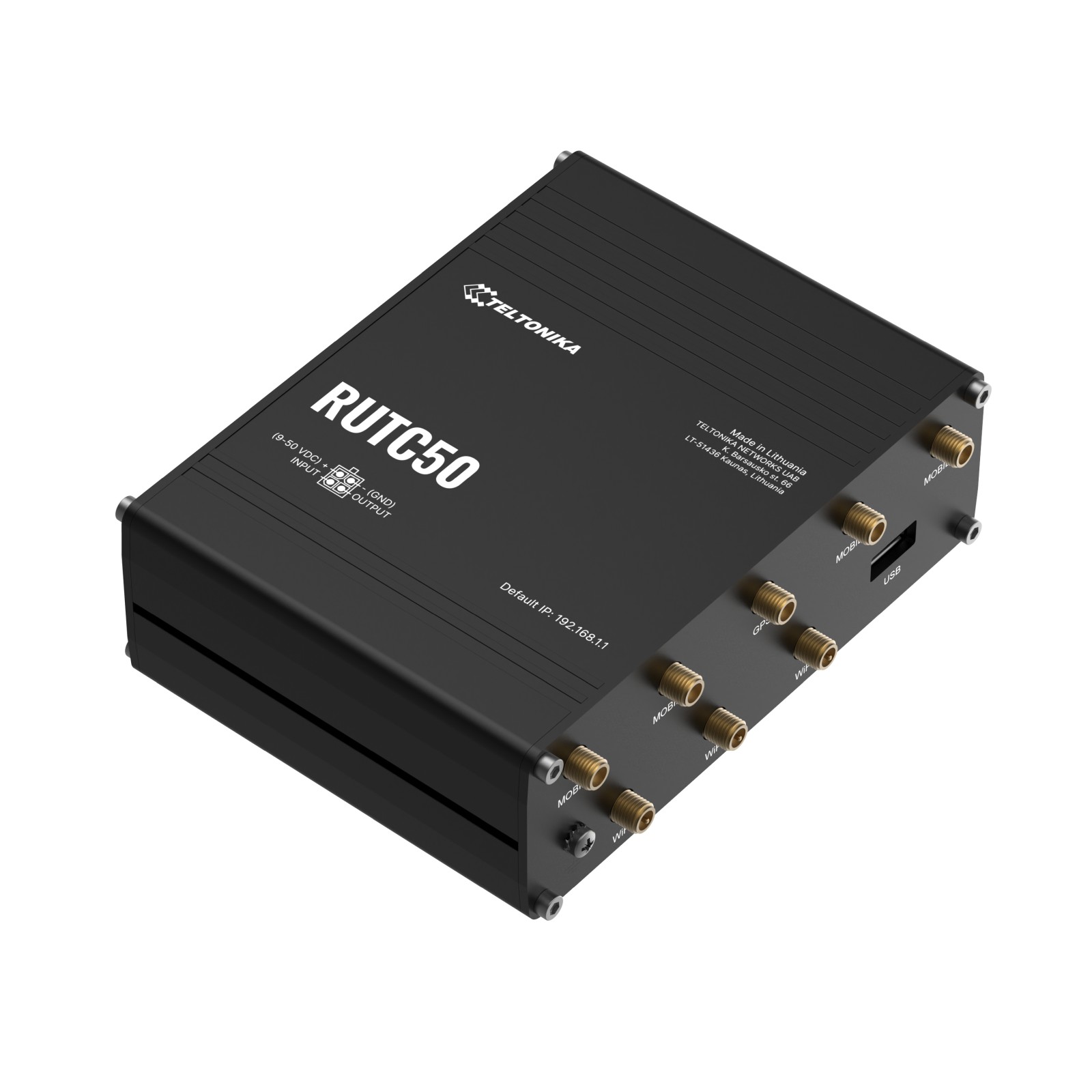

Teltonika RUTC50

Mobile
Mobile module
5G Sub-6 GHz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G – 42 Mbps DL, 5.76 Mbps UL

eSIM*
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
Feature availability varies by order code (RUTC50 1**)

3GPP Release
Release 16

SIM switch*
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

SIM switch**
2 SIM cards and 1 eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Feature availability varies by order code (RUTC50 0**)
Feature availability varies by order code (RUTC50 1*)

Status
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD
Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list
Operator block/allow list (by country or separate operators)

Multiple PDN
Possibility to use different PDNs for multiple network access and services

Band management
Band lock, Used band status display

SIM idle protection service
Allows router to periodically switch to the unused SIM card to prevent SIM blocking

SIM PIN code management
Enable setting, changing, or disabling SIM PIN

APN
Auto APN

Bridge
Direct connection (bridge) between mobile ISP and device on LAN

Passthrough
Router assigns its mobile WAN IP address to another device on LAN

Framed routing
Support an IP network behind 5G UE

Wireless
Wireless mode
802.11b/g/n/ac/ax (Wi-Fi 6) with up to 2402 Mbps on 5GHz, 576 Mbps on 2.4GHz (Dual Band, MU-MIMO)

Wi-Fi security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12, disable auto-reconnect, 802.11w PMF

SSID/ESSID
SSID stealth mode, MAC-based access control

WiFi users
Up to 512 simultaneous connections

Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition (802.11v), radio resource measurement (802.11k)

Wireless MAC filter
Allowlist, blocklist

Wireless QR code generator
Automatic Wi-Fi access after scanning

TravelMate
Forward Wi-Fi hotspot landing page to connected device

Ethernet
WAN
1 x WAN port 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az compliant, auto MDI/MDIX

LAN
4 x LAN ports 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az compliant, auto MDI/MDIX

Network
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan, VXLAN

VoIP passthrough support
H.323 and SIP-ALG NAT helpers

Connection monitoring
Ping/Wget Reboot, Periodic Reboot, LCP/ICMP link inspection

Firewall
Port forward, traffic rules, custom rules, TTL target customization

Port management
View, enable/disable, change speed, auto-configuration

Network topology
Visual network representation

DHCP
Static/dynamic IP, DHCP relay/server, static leases, MAC wildcards

QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol, WMM, 802.11e

DDNS
Supported >77 providers, manual configuration possible

DNS over HTTPS
Secure DNS resolution over HTTPS

Network backup
Wi-Fi WAN, Mobile, VRRP, Wired automatic failover

Load balancing
Balance Internet traffic across multiple WAN connections

Hotspot
Captive portal, internal/external Radius, SMS authorization, SSO, landing pages, walled garden, user groups, theme customization

Hotspot 2.0
Seamless, secure, automatic connection to trusted networks

SSHFS
Mount remote file systems via SSH

Traffic Management
Real-time monitoring, signal charts, traffic history

Port Mirroring
Mirror Ethernet traffic for monitoring

Security
802.1x
Port-based network access control

Authentication
Pre-shared keys, digital certificates, TACACS+, RADIUS, IP/login block, time-based login blocking

Firewall
Preconfigured and custom rules via WebUI/CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention
DDoS, port scan, SYN-FIN, SYN-RST, X-mas, NULL, FIN scan protections

VLAN
Port/tag-based VLAN separation

Mobile quota control
Data limit, customizable period, warning, phone number alerts

WEB filter
Blacklist/Whitelist for websites

Access control
SSH, WebUI, CLI, Telnet management

TPM
Identification/authentication module, TPM 2.0

Certificate Manager
Create CA, server, client, Let's Encrypt, SCEP certificates

VPN
OpenVPN
Multiple clients/server, 27 encryption methods

IPsec
XFRM, IKEv1/2, 14 encryption methods

GRE
GRE tunnel, GRE over IPsec

PPTP/L2TP
Client/server, L2TPv3, L2TP over IPsec

Stunnel
TLS proxy for existing clients/servers

DMVPN
Scalable IPsec VPN, Phase 2/3, Dual Hub support

SSTP, ZeroTier, WireGuard, Tinc, Tailscale
VPN client/server support with encryption and authentication

OPC UA
Client, Server; TCP connection

MQTT Gateway
Modbus MQTT Gateway, send/receive commands via MQTT broker

MODBUS
Server, Client; TCP/USB; custom registers; 8/16/32-bit formats

Data to Server
HTTP(S), MQTT, Azure MQTT; custom LUA scripting

DNP3
Station/Outstation; TCP connection

DLMS/COSEM
Client support; TCP/USB

API
Teltonika Networks Web API (beta) for data retrieval/control

Monitoring & Management
WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS

IoT Platforms
ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core, DOCKER support

System Characteristics
CPU: Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM*: 512MB DDR3
RAM: 1GB DDR4
FLASH storage*: 16MB NOR, 512MB NAND
FLASH storage: 16MB NOR, 8GB eMMC

Firmware/Configuration
WEB UI, FOTA, RMS, Keep settings, Factory reset, RutOS (OpenWrt based), SDK, GPL customization, Package Manager

Location Tracking
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Coordinates via WebUI, SMS, TAVL, RMS
NMEA 0183, NTRIP protocol
Server software: TAVL, RMS
Geofencing support

USB
USB 2.0; Samba share, USB-to-serial; connect external HDD, modem, printer
Storage: FAT, FAT32, exFAT, NTFS (read-only), ext2/3/4

Input/Output
1x Digital Input (0-6V low, 8-50V high)
1x Digital Output, max 50V/300mA
Event triggers via Email, RMS, SMS
I/O juggler

Power
4-pin DC 9-50V, reverse polarity, surge protection
PoE via LAN1 (Mode B, 9-30V, from HW rev 0003)
Power consumption*: Idle <4.5W, Max <13.5W
Power consumption**: Idle <5.6W, Max <20.2W

Physical Interfaces
Ethernet: 5x RJ45
I/O: 1x Digital Input, 1x Digital Output
Status LEDs: WAN, mobile, LAN, power, Wi-Fi
SIM: 2x Mini SIM, optional eSIM
Antennas: 4x SMA Mobile, 3x RP-SMA Wi-Fi, 1x SMA GNSS
USB: 1x A port
Reset button, grounding screw

Physical Specification
Anodized aluminum housing, 130.4 x 42.6 x 103.4 mm, 452 g
Mounting: DIN rail, wall, flat surface

Operating Environment
Temp: -40°C to 75°C, Humidity 10-90% non-condensing, IP30

Regulatory & Approvals
REACH, RoHS, CE, UKCA, CB, CE/RED, RCM, EAC, UCRF, WEEE
Vehicle: ECE R118, ECE R10

EMC & RF Standards
EN 55032, 55035, 61000-3-3, 61000-3-2, EN 301 489 series, EN 300 328/440/893/413, EN 301 908 series

Safety Standards
EN IEC 62368-1, 62311
